The self-cleaning disc filter is an efficient liquid filtering system comprising several layers of filter discs. Utilizing pressure from within the filter, liquids pass through the discs, separating solid particles and other impurities. This purification process provides clean liquid that can maintain long-term and continuous operation. Thanks to the program, cleaning of the filter elements is automated, with reverse flushing or shaking to remove the build-up of impurities. There are multiple benefits to the self-cleaning laminated filter, such as high accuracy and ease of maintenance, as well as a high degree of automation.

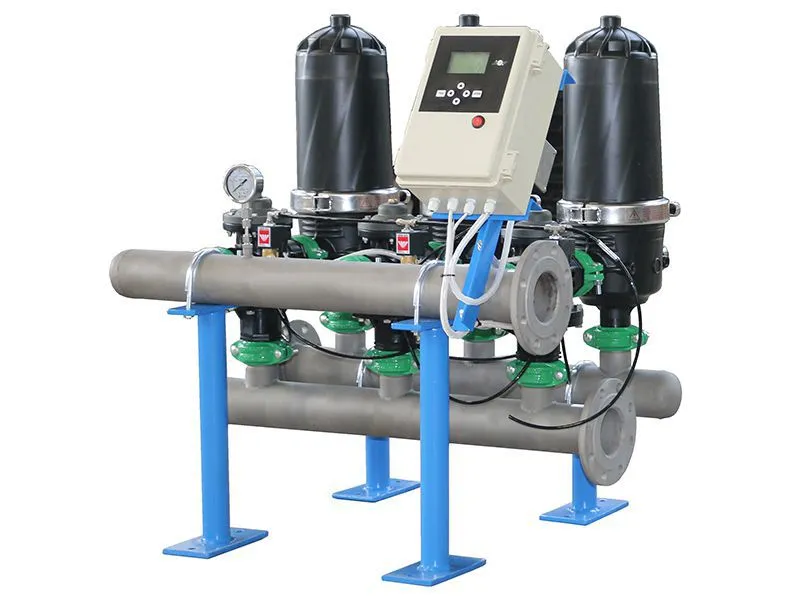

2" Self-Cleaning Disc Filter

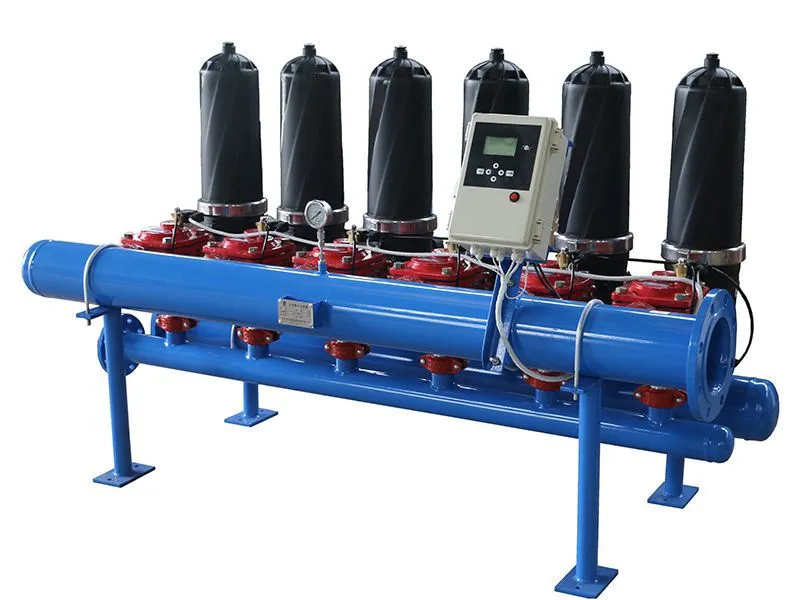

3" Self-Cleaning Disc Filter

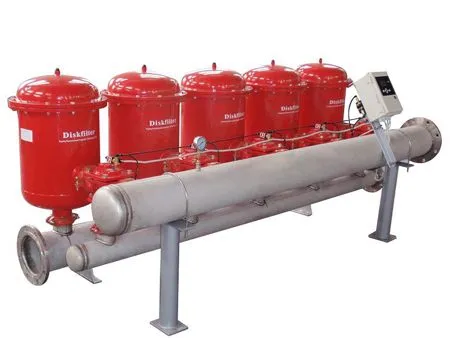

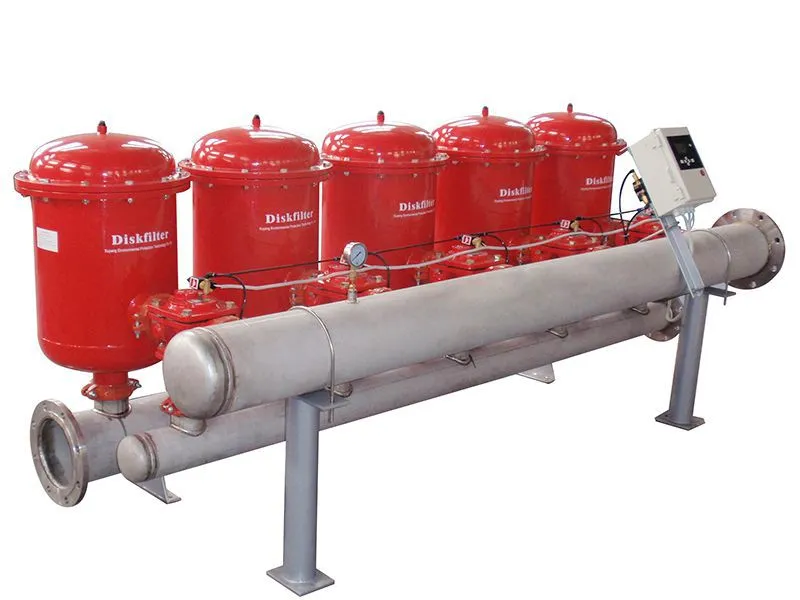

4" Self-Cleaning Disc Filter

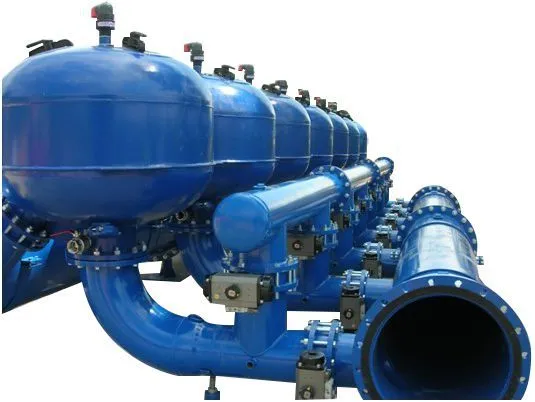

10" Self-Cleaning Disc Filter

• Precise filtration

  For those seeking to purify their water supply, filter discs with varying levels of accuracy are available. Options include discs with 50, 100, 200, and 400 μm precision, providing more than 85% filtration accuracy.

• Thoroughly and efficiently backwashing

  Thanks to the centrifugal jet effect added during backwashing, the filter's pores are fully opened and the cleaning effect is improved beyond what other filters can provide. Backwashing is a quick process, taking only 10-30 seconds for each filtration unit.

• A fully automated process providing continuoufreshwaterer

  The filtration system utilizes set timers and differential pressure control for initiating backwash cycles. Thus, the individual filter components and workstations can cycle through working and backwashing states sequentially, leading to a continuous, low-pressure water discharge. This operational method ensures effective filtration and backwashing unaffected by the duration of its use.

• Modular design

  Users can pick the desired quantity of filter units to accommodate their needs. This provides flexibility, interchangeability and adaptability to the local workshop, taking up less ground space if required.
• This product requires minimal upkeep, necessitating no specialized equipment for monitoring and boasting a few removable components.

When the pressure difference reaches a predetermined threshold or has passed a pre-specified period, the backwashing stage automatically begins. To reverse the water flow, the valve is controlled and the four groups of nozzles will become open, activating the piston as it moves up to break the lamination’s pressure and open up the top part. Furthermore, the backwashing water is sprayed intensely, rotating the laminations in an even manner, while the water sprays its surface and blasts off the particles stuck on it. Once the backwashing is finished, the process will then return to the filtration stage.
