As it is fed through the filter body, source water passes through the filter screen and any smaller particle impurities become trapped within the mesh of the screen's inner surface. The filtered water, once purified, is then released via the water outlet.

Self-cleaning can be initiated in one of three ways: by differential pressure, set timers, or manually. The preferred method is differential pressure.

Once the differential pressure (P) between the interior and exterior of the filter reaches the designated level, the self-cleaning mode sets off. The operation involves opening the hydraulic valve bonded to the drain pipe, which then produces a negative pressure inside the suction nozzle of the suction scanner. This, at the same time, draws impurities away, and the suction scanner spirals and moves along the inside walls of the filter via hydraulic action, making sure even the most remote areas of the filter are cleansed and discharged through the sewage outlet.

The control system pre-determines the self-cleaning filter's cleaning time, and once finished, the blow-down valve is shut. The entire cleaning process requires very little water.

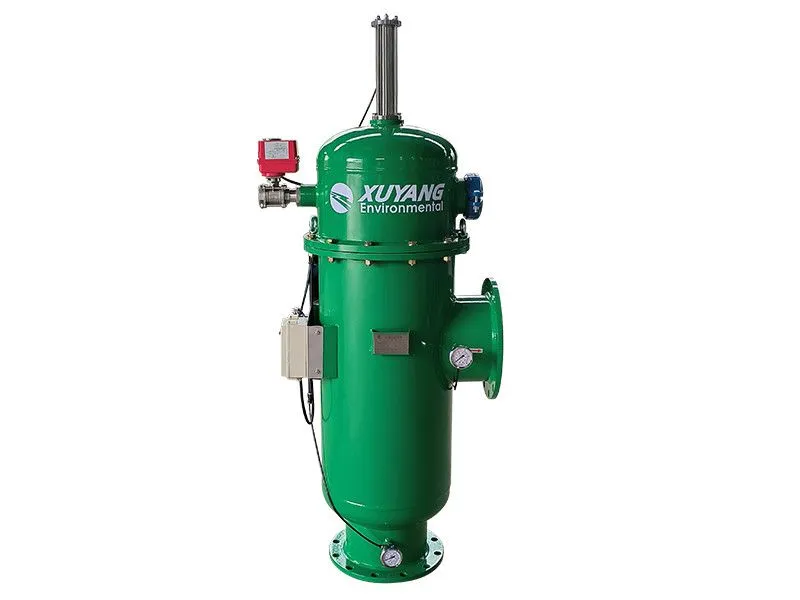

Hydraulic Self-Cleaning Screen Filter, AT

• Flow rate (single filter): 20-1200m³/h
• Filtration degree: 50～800um
• Nominal pressure: 1.0～1.6Mpa
• Operating pressure: 0.2～1.0Mpa
• Operating temperature: ≤60℃
• Cleaning pressure loss: 0.01Mpa
• Control mode: Differential pressure/timing/manual
• Cleaning time: 10s (can be set)
• Power supply: AC; 220v/50Hz
• Power: 15W

The self-cleaning of the filter completely depends on the water pressure in the system pipeline without external power.

Request a Quote

Technical Specifications

Model	Inlet/outlet connection (mm)	Filter screen area (cm²)	D1 (mm)	X (mm)	Y (mm)	H (mm)	H1 (mm)	Flow rate (m3/h)	Weight (kg)
AT-602	20	1700	273	265	460	1210	620	20	60
AT-603	80	1700	273	265	460	1210	620	35	180
AT-604	100	3400	273	265	630	1430	620	80	180
AT-606	150	3400	273	265	630	1430	620	130	210
AT-608	200	6500	430	350	730	1650	2150	250	450
AT-610	250	7000	430	350	750	1750	2350	350	380
AT-612	300	12000	530	400	750	2100	2700	500	470
AT-614	350	12000	530	400	750	2100	2700	700	500
AT-616	400	15600	630	450	800	2150	2750	1000	610

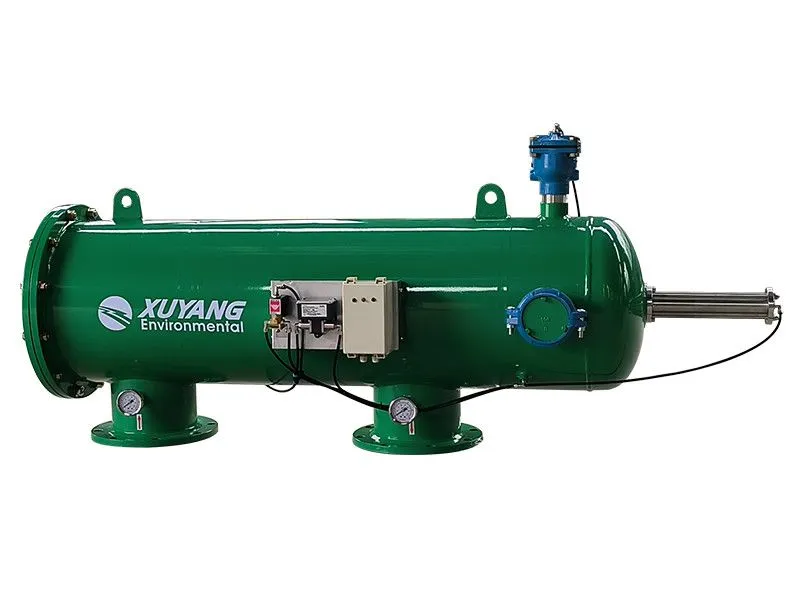

Hydraulic Self-Cleaning Screen Filter, AM

• Flow rate (single filter): 50-1500m³/h
• Filtration degree: 50～800um
• Nominal pressure: 1.0～1.6Mpa
• Operating pressure: 0.2～1.0Mpa
• Operating temperature: ≤60℃
• Cleaning pressure loss: 0.01Mpa
• Control mode: Differential pressure/timing/manual
• Cleaning time: 30 s (can be set)
• Power supply: AC;220v/50Hz
• Power: 15W

The self-cleaning of the filter completely depends on the water pressure in the system pipeline without external power.

Request a Quote

Technical Specifications

Model	Inlet/outlet connection (mm)	Filter screen area (cm²)	D1 (mm)	L1 (mm)	L2 (mm)	L3 (mm)	H (mm)	Flow rate (m³/h)	Weight (kg)
AM-603	80	3400	273	550	1530	2650	560	35	180
AM-604	100	3400	273	550	1530	2650	560	80	180
AM-606	150	5600	273	800	1850	3300	600	130	210
AM-608	200	8400	430	900	2450	3600	835	250	430
AM-610	250	8400	430	900	2450	3600	835	350	450
AM-612	300	13800	530	1000	2550	3850	920	500	520
AM-614	350	13800	530	1000	2750	3850	920	700	530
AM-616	400	17000	630	1100	2960	4600	960	1000	710
